Umill 1500-5axis

Max. X travels: 1500 mm

Max. Y travels: 1500 mm

Max. Z travels: 1100 mm

Max. table load: 4.5 tons

Table size: Ø1400 x 1200 mm



Working envelope:

Ø 2100mm x height 1100mm

Spindle speed: up to 20000 rpm

Tool magazine: up to 203 pockets

Tool taper: HSK100-A /  HSK63-A



Umill 1800-5axis

Max. X travels: 1800 mm

Max. Y travels: 2150 mm

Max. Z travels: 1250 mm

Max. table load: 10 tons

Table size: Ø1700 x 1400 mm



Working envelope:

Ø 2500mm x height 1250mm

Spindle speed: up to 20000 rpm

Tool magazine: up to 203 pockets

Tool taper: HSK100-A /  HSK63-A



Dynamill G5-5axis

Longitudinal axis travel: 2500-4000-6000-8000mm

Cross axis travel: 2200-3500mm

Vertical axis travel: 1300-1500mm

Feedrate: 40m/min

Spindle speed: up to 20000 rpm

Tool magazine: up to 64 pockets

Tool taper: ISO50 / HSK100-A / HSK63-A

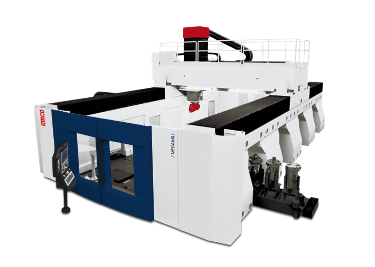

Megamill-5axis

Longitudinal axis travel: 7500 mm and more (in steps of 2500 mm)

Cross axis travel: 4000-5000-6000-7000 mm

Vertical axis travel: 1500-2000-2500 mm

Feedrate: 30 m/min

Spindle speed: up to 24000 rpm

Tool magazine: up to 120 pockets

Automatic head changer: 2 / 3 / 4 pockets

Tool taper: ISO50 / HSK100-A / HSK63-A




Ecomill-5axis

Longitudinal axis travel: from 6000 to 10000 mm (steps of 2000 mm)

Cross axis travel: 13000 mm

Vertical axis travel: 2500 mm

Feedrate: 30 m/min

Spindle speed: up to 20000 rpm

Tool magazine: up to 60 pockets

Tool taper: HSK100-A / HSK63-A



Powermill-5axis

Longitudinal axis travel: 6000 mm and more (in steps of 2500 mm)

Cross axis travel: 4000-5000-6000-7000 mm

Vertical axis travel: 1500-2000-2500 mm

Feedrate: 30 m/min

Spindle speed: up to 24000 rpm

Tool magazine: up to 120 pockets

Automatic head changer: 2 / 3 pockets

Tool taper: ISO50 / HSK100-A / HSK63-A
